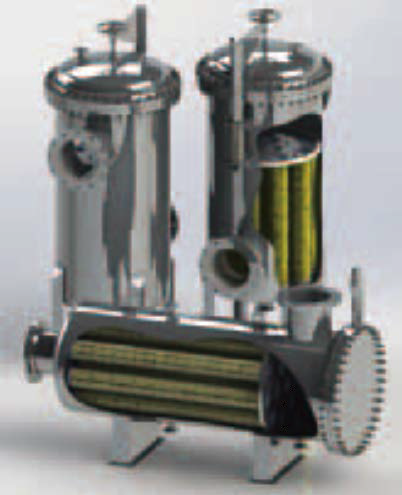

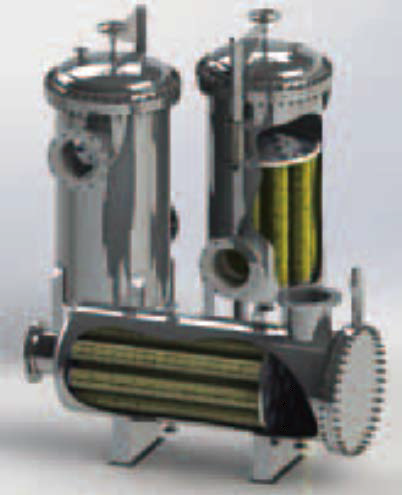

K-Flow has a line of high flow cartridge filters ( PL series ). Because of the proprietary design of the HF high flow elements, vessel sizes are smaller, fewer elements are required, and your cost savings are substantially increased. The HF high flow elements achieve flow rates up to 300 GPM ( 1100 LPM ) in water.

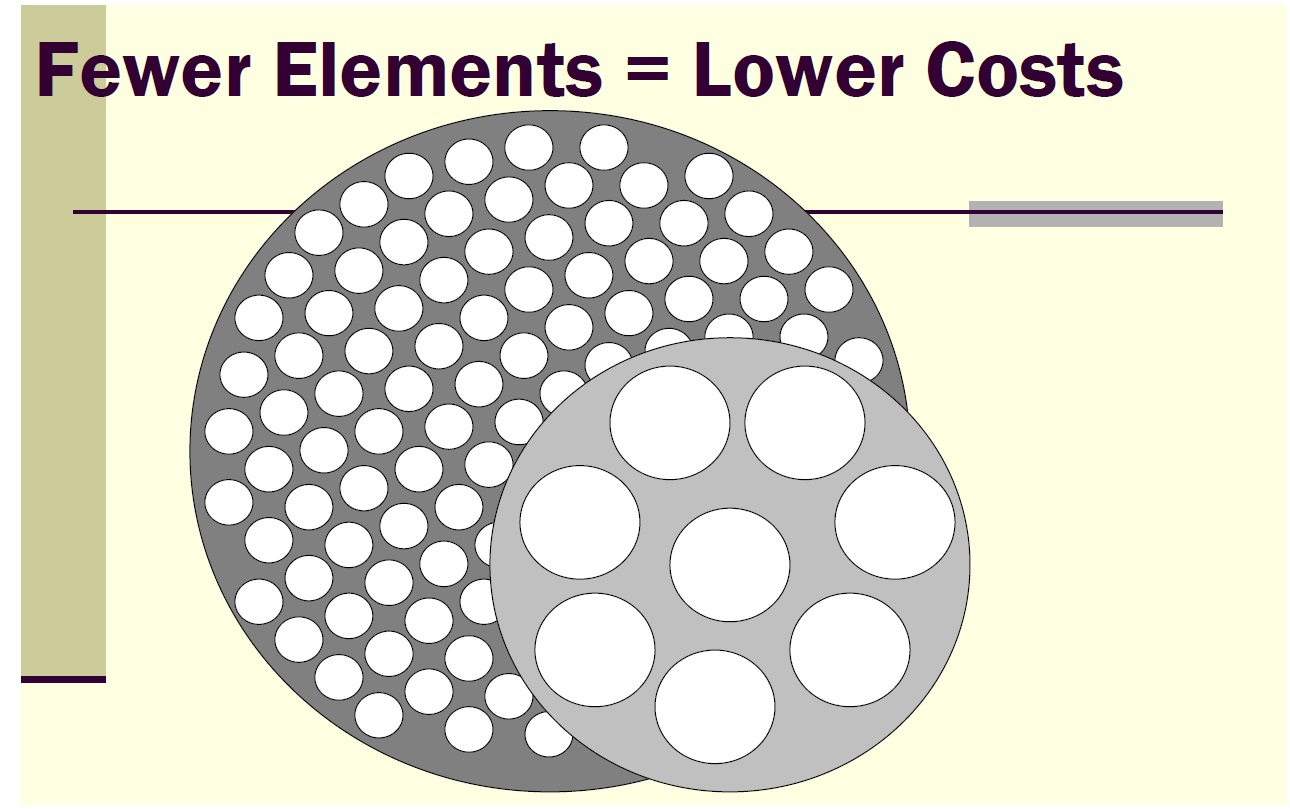

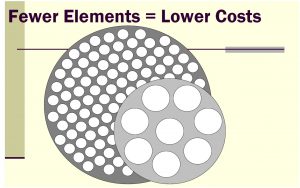

You will have up to 30 times fewer filters compared to standard filters, plus you will have the excellent dirt holding capacities and particle removal efficiencies of K-Flow’s pleated HF filter medias.

The benefits to you are :

  • Lower initial costs
  • Absolutely filtration
  • Longer service life Less maintenance Running cost





Standard filters V.S. High flow filters

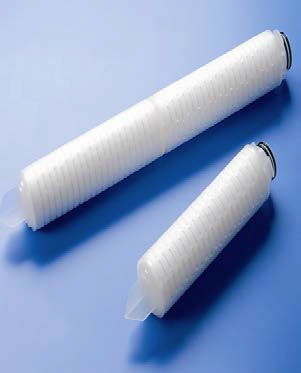

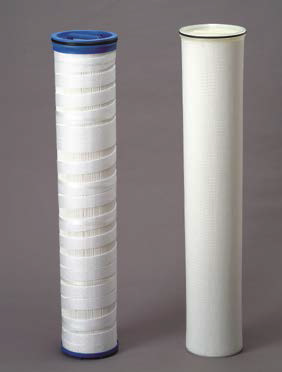

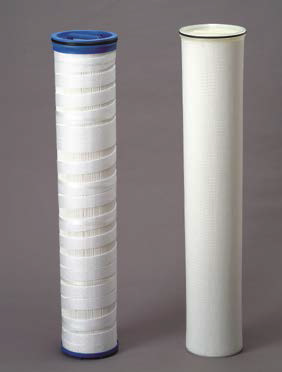

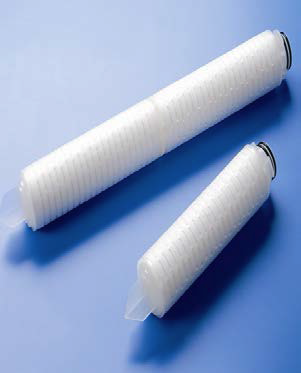

Standard Pleated HF high flow
Type  of  filtration Absolute rated efficiency Absolute rated efficiency
Outside  diameter 2.5” 6”
Length 10”, 20”, 30”, 40” 20”, 40” ,60”
Surface  area  per 40” 0.2 m^2 6.13 m^2
Material of media PP, PES, PTFE PP, Micro-fiberglass,
Polyester, etc.
Maximum diff. pressure 2.5~ 4.0 Bar 1.8~2.5 Bar
Absolute  retention rates 0.45, 0.6, 0.8, 1.2, 2.4,
5, 7, 10,20,30,40 ,etc.
0.45, 0.8, 1, 2, 4.5, 6,
10,20,50,70 & 100
Flow rate & clean ΔP High Low
Dirt holding capacity Low High
