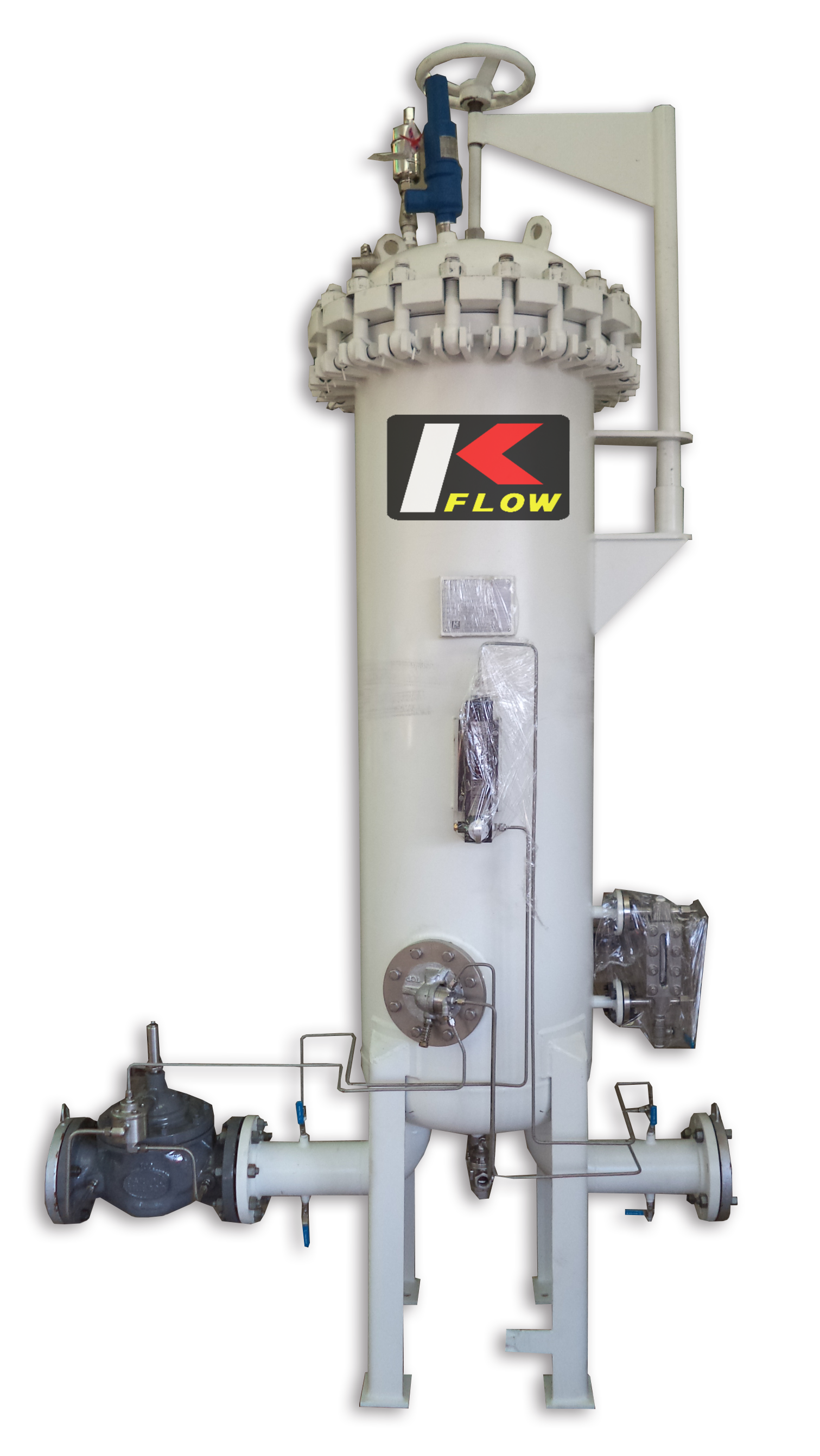

FWS - Filter water separator [ フィルターウォーターセパレーター FWS ]

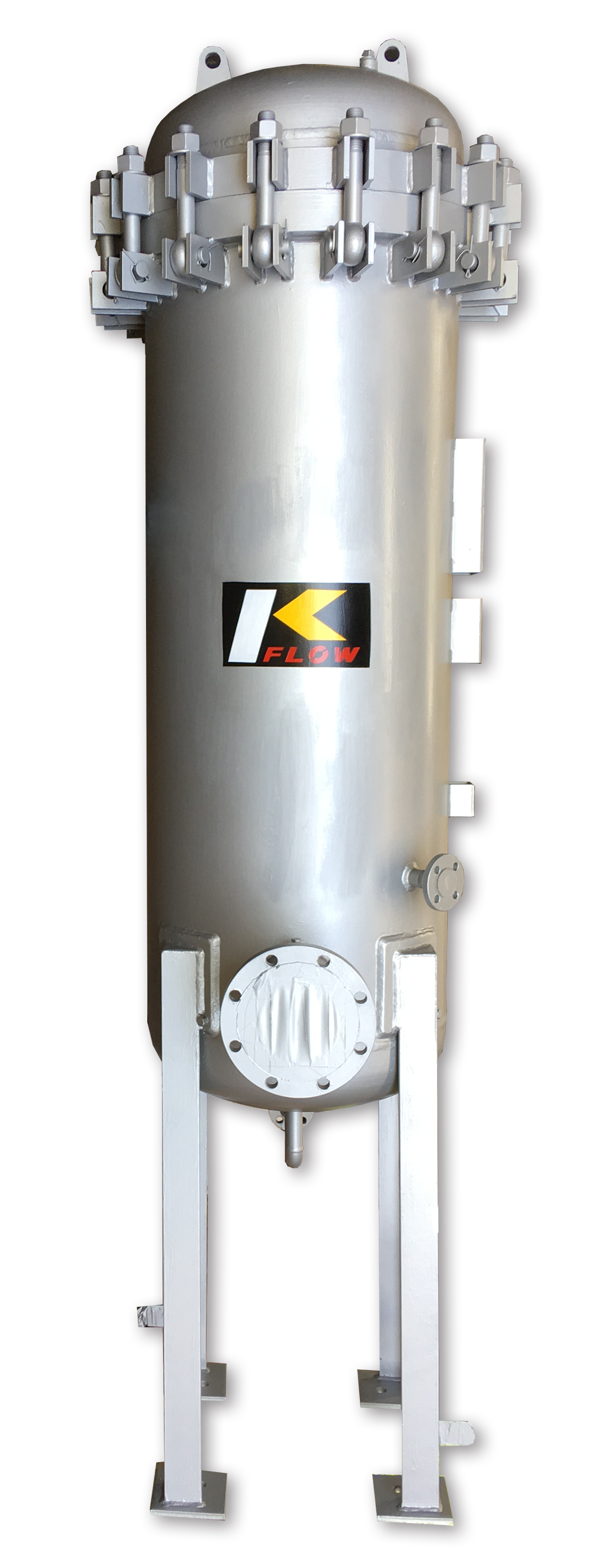

FWS - Filter water separator [ フィルターウォーターセパレーター FWS ] - Image 2

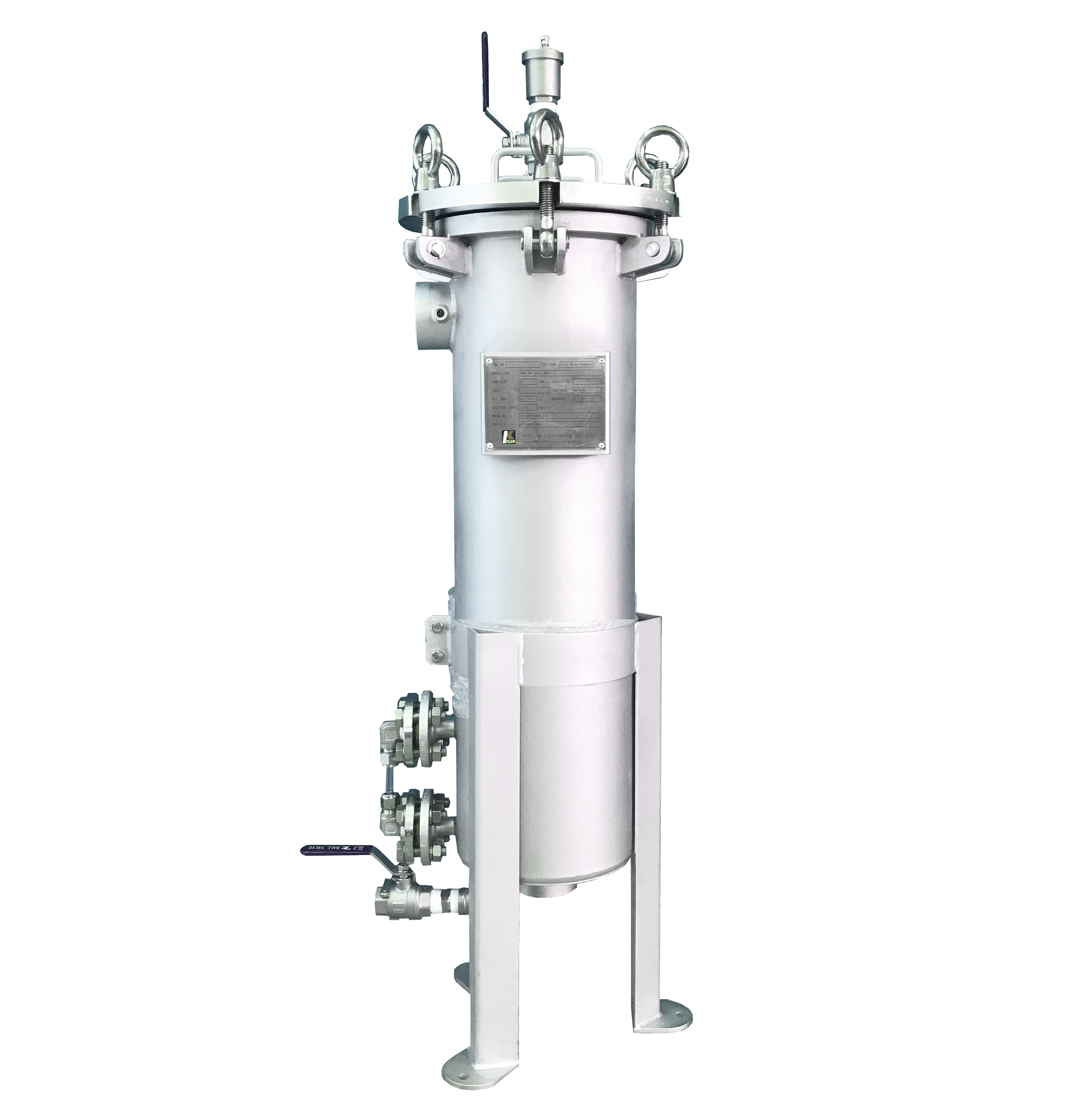

FWS - Filter water separator [ フィルターウォーターセパレーター FWS ] - Image 3

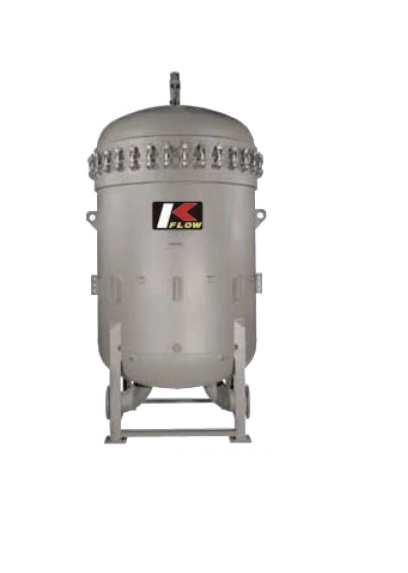

FWS - Filter water separator [ フィルターウォーターセパレーター FWS ] - Image 4

FWS – Filter water separator [ フィルターウォーターセパレーター FWS ]

▲ Catalog Download

Category:

Description

Advantages

K-Flow filter water separators is a vessel containing filter / coalesce and separator elements that continuously removes dirt and water from aviation jet fuel / diesel / light oil to levels acceptable for servicing modern aircraft and vehicles. A filter water separator can have either a vertical or a horizontal configuration and multiple stages. Vessel are designed and built in accordance with the strict engineering guidelines and pressure vessel regulations.

Technical specifications



Design code  ASME Sec. VIII, Div.1 & API/IP 1581 lately edition.
Nominal micron rating 0.5 ~ 25 micron, etc.
Maximum differential pressure  1.0 bar (15 psi)
Admissible operating temperature -30 ~ +80 ℃
Construction  Carbon steel or stainless steel
Options  ASME U stamped, Differential pressure indicator & Switch & Transmitter, Sampling probe, Automatic air vent with check valve, Pressure relief valve, Sight glasses (level gauges), Water slug control valve, Rate flow control valve, Flange float pilot & automatic eater drain valve, Drain valve.



Applications

Jet fuels / Diesel fuels / Light oils
