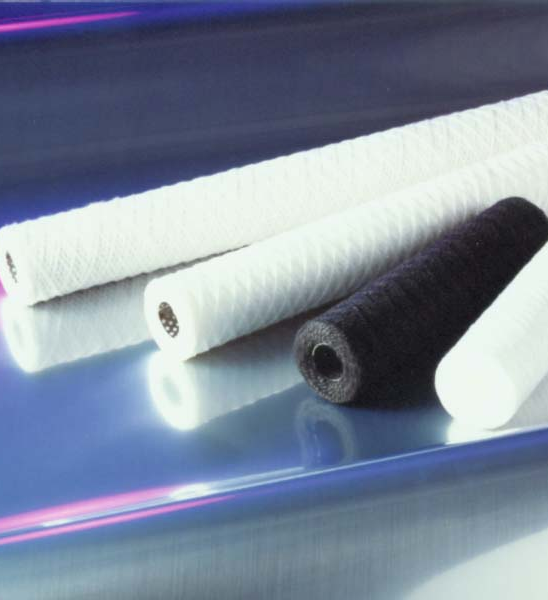

String Wound


High flow rate and high dirt holding capacity makes long service life. Superior ability in filtering liquid high viscosity and solids. All materials used in cartridges are FDA listed for food contact use.

  • Application in chemicals, petrochemicals, oil, food & beverages, process water . Polypropylene, cotton and glass fiber materials of construction, in 28 /30 mm I.D., 60-62 mm O.D. and 250 -1000 mm length ( 10-40” ).
  • Recommended operating condition for change-out 2.4 bard , for temperature polypropylene 82℃ , cotton 121℃ ,glass fiber 400 ℃. D.O.E., 222/Flat, 222-Fin, 226/Flat, 226/Fin style are all available.
  • Seals: EPDM/Silicone/NBR/Viton/Special upon request.
