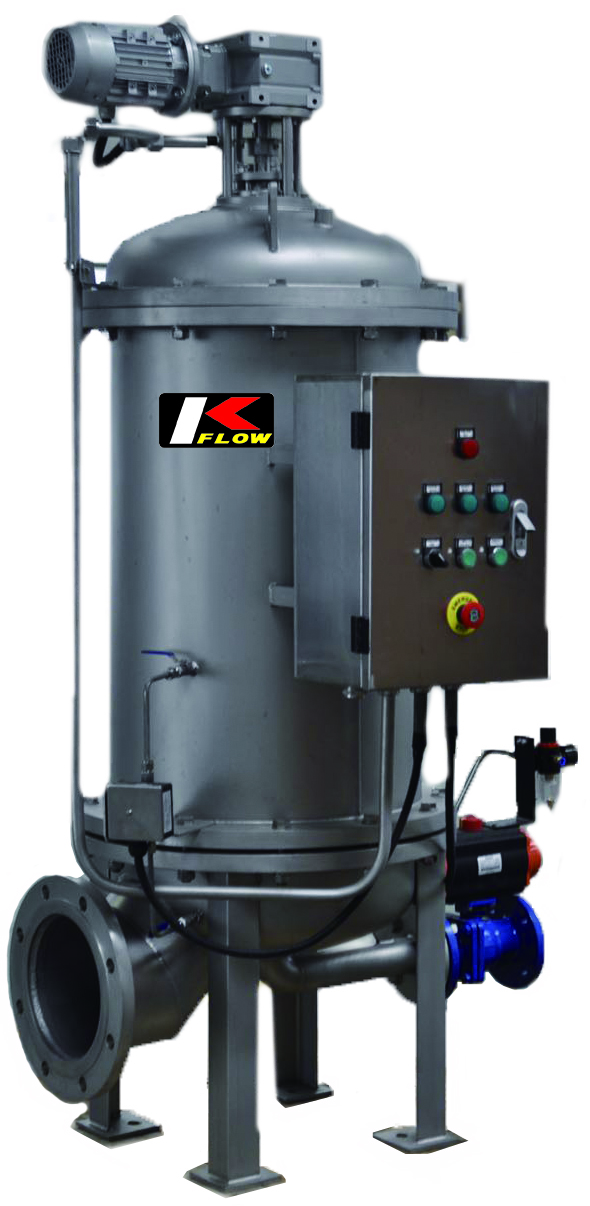

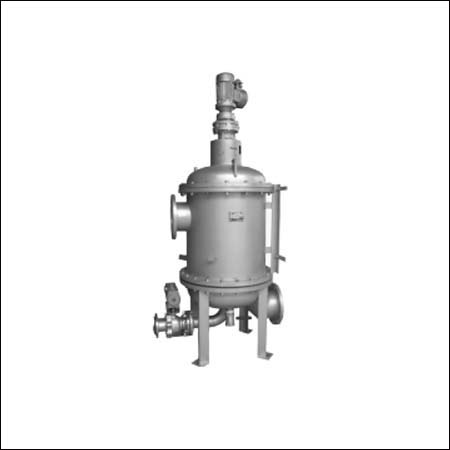

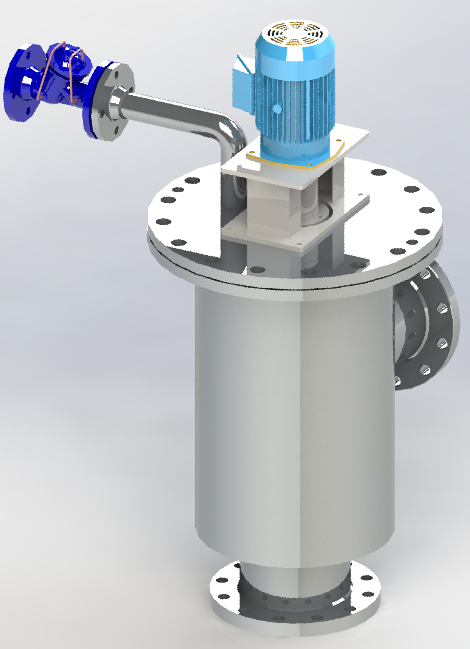

ABW Back-Flush Type [ ABW バックフラッシュタイプ ]


Technical specifications


Material of housing Carbon steel, stainless steel 304, 316, duplex steel.
Material of element AISI 316L, 321, Monel 400.
Maximum working pressure 10 Barg
Maximum working temperature 200 ℃
Filtration rating 50 to 3000 micron
Power supply 220/380/440 VAC, 50/60 HZ, three phase.
Control voltage 24 VAC, 12/24 VDC.
Enclosure class of weather proof NEMA 1, 12 or 4
Enclosure class of explosion proof NEMA CL. 1, Div. 2 Gr. B, C, D



Groundwater, seawater, lake, reservoir water, pond water, cooling water circulation, frozen water, high and low voltage gush to drench water, squirt water, seal water, bearing seal water, oil well note water, etc.

  • Automatic and continuous filtration without interruption the flow, reduce down time and operation cost.
  • Low velocity filtration design, pressure drop low and delay the filter cake built up, fine filtration, back-flushing quantity of water low and save cost.
  • Wedge wire screen, smooth surface, back-flushing effect good, compact structure, life time long.
  • Back-flushing elements step by step, effect good and less back wash water consumption.
  • Single vessel can handle large capacity and save installation and space cost.
  • No need many control valves, inter connecting pipes and fittings, reliable and operating cost is very low.
  • Fully automatic control system and easy operation and linked with DCS control system.
